Case Study
Mancunian Way, Manchester
Emergency stabilising of a large sink hole which appeared in a major dual carriageway.
Details
Client: Amey / United Utilities
Value: £4,500,000
Services Provided
Scope of Works

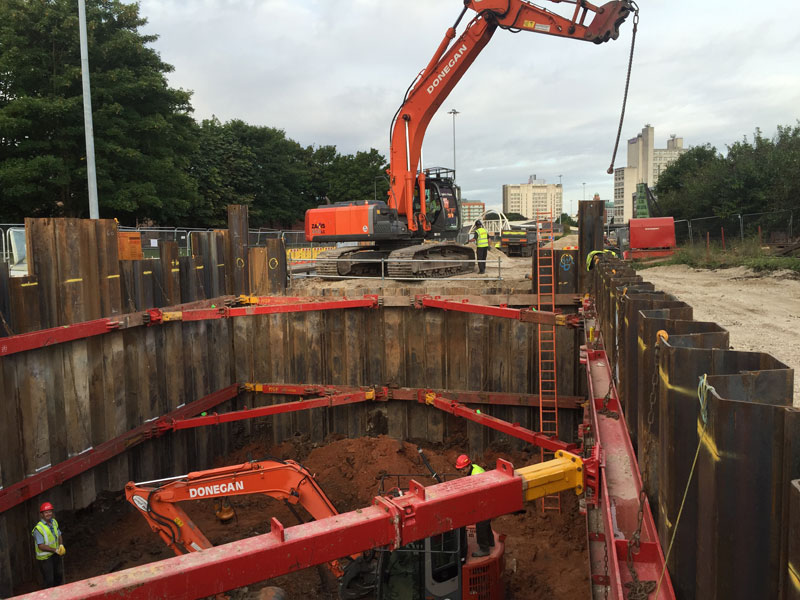

- Sheet Piling and excavation of a cofferdam approx. 11m x 8m x 7m in depth.

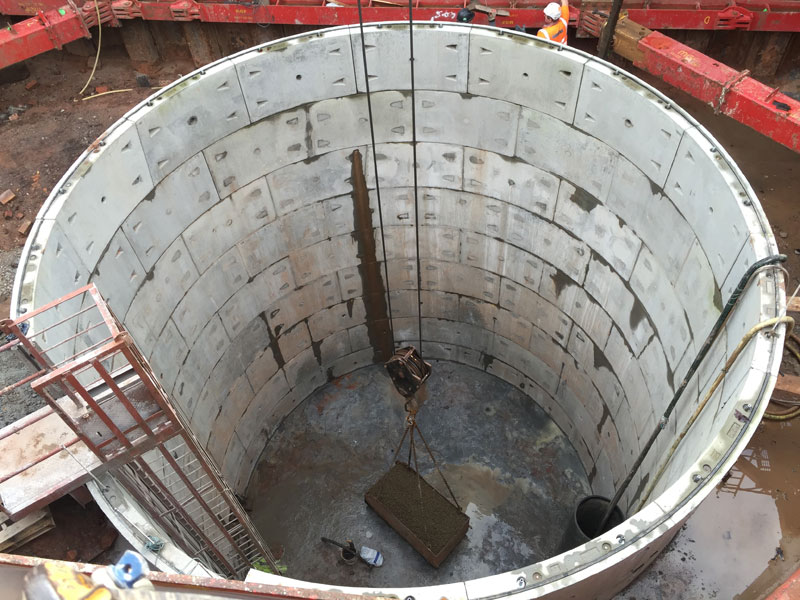

- Construction of 6 no. segmental shafts, up to 8.50m in diameter, up to 15m in depth.
- Completion works to above, including reinforced concrete bases, benching, backdrops and precast concrete roof slabs.

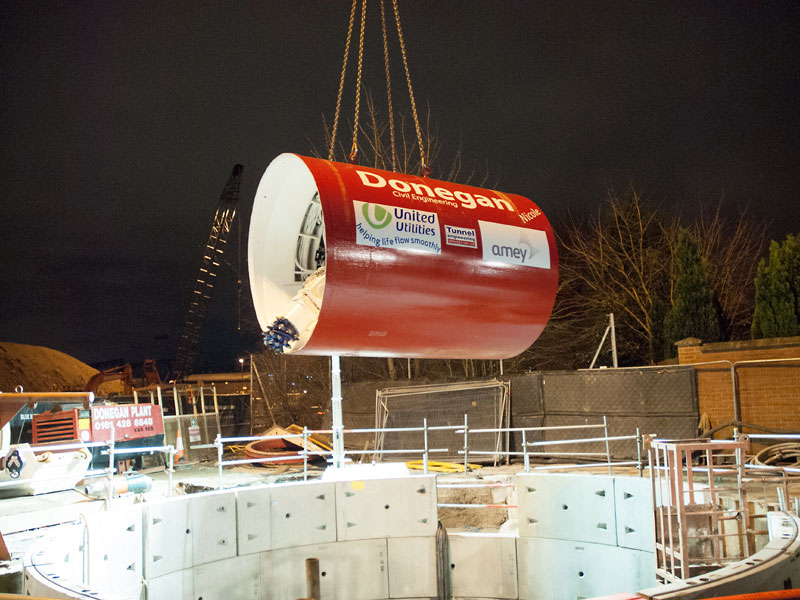

- Construction of an 1800mm dia. tunnel approx. 125m in length in sandstone, by Pipejacking techniques, using a Shield-Mounted Roadheader Tunnelling Machine.
- Reconstruction of carriageway, including kerb and central reservation replacement.
